THV2000 PLATFORM
8581 Android 12

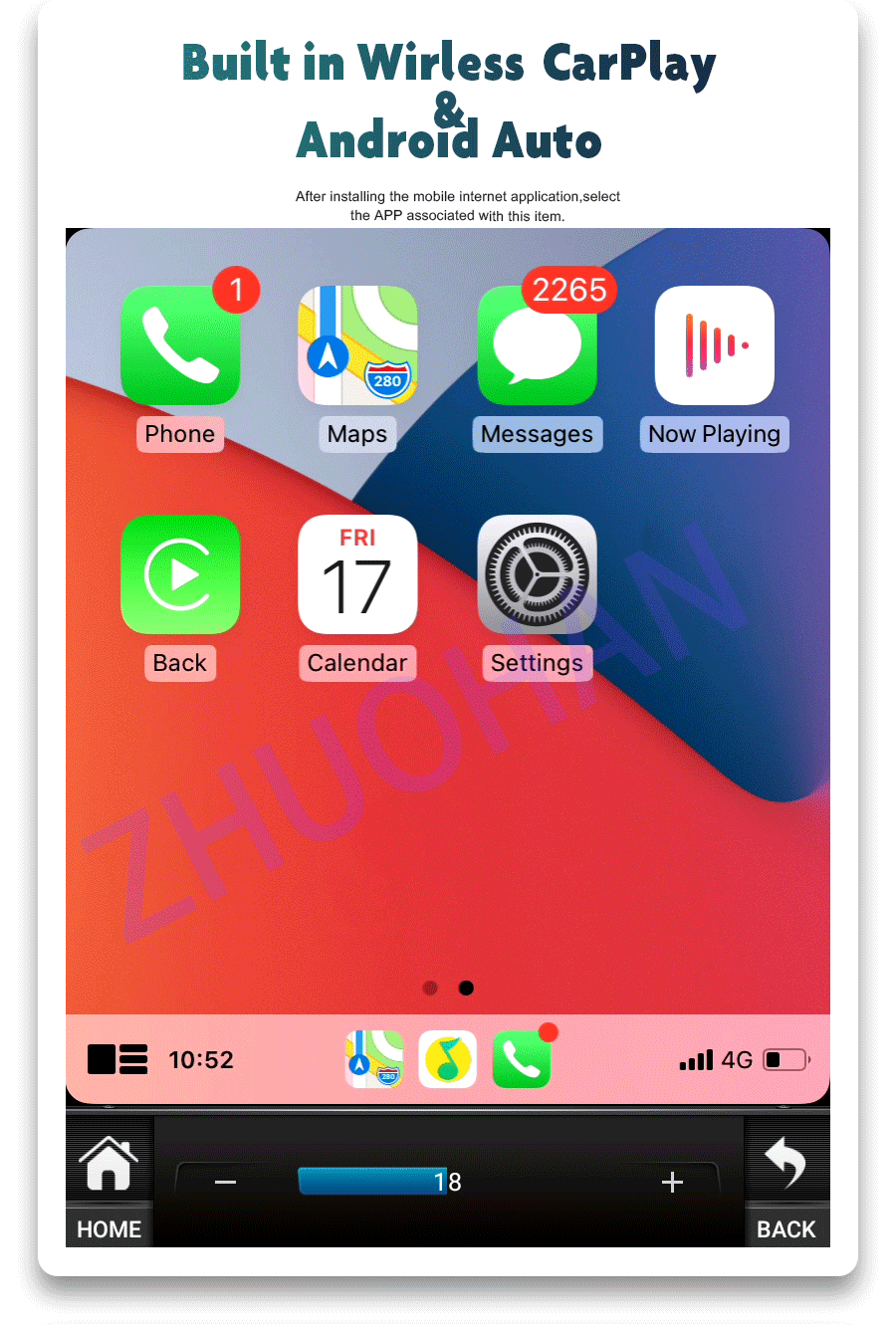

Built-in wireless Carplay+Android Auto,Built-in DSP
7708 radio IC
7851 amplifier IC
| Configuration | |
| OS | Android 12 system |
| CPU | Octa-Core 1.6GHZ (ARM Cortex A55) UIS8581A(SC9863A) |
| RAM | DDR3 2/4GB |
| Flash | Built in 32/64GB |
| Touch Screen | HD 1024*768 Screen |
| Radio IC | ST TDA7708 |
| Amplify IC | ST TDA7388 |
| Out Power | 4*45w |

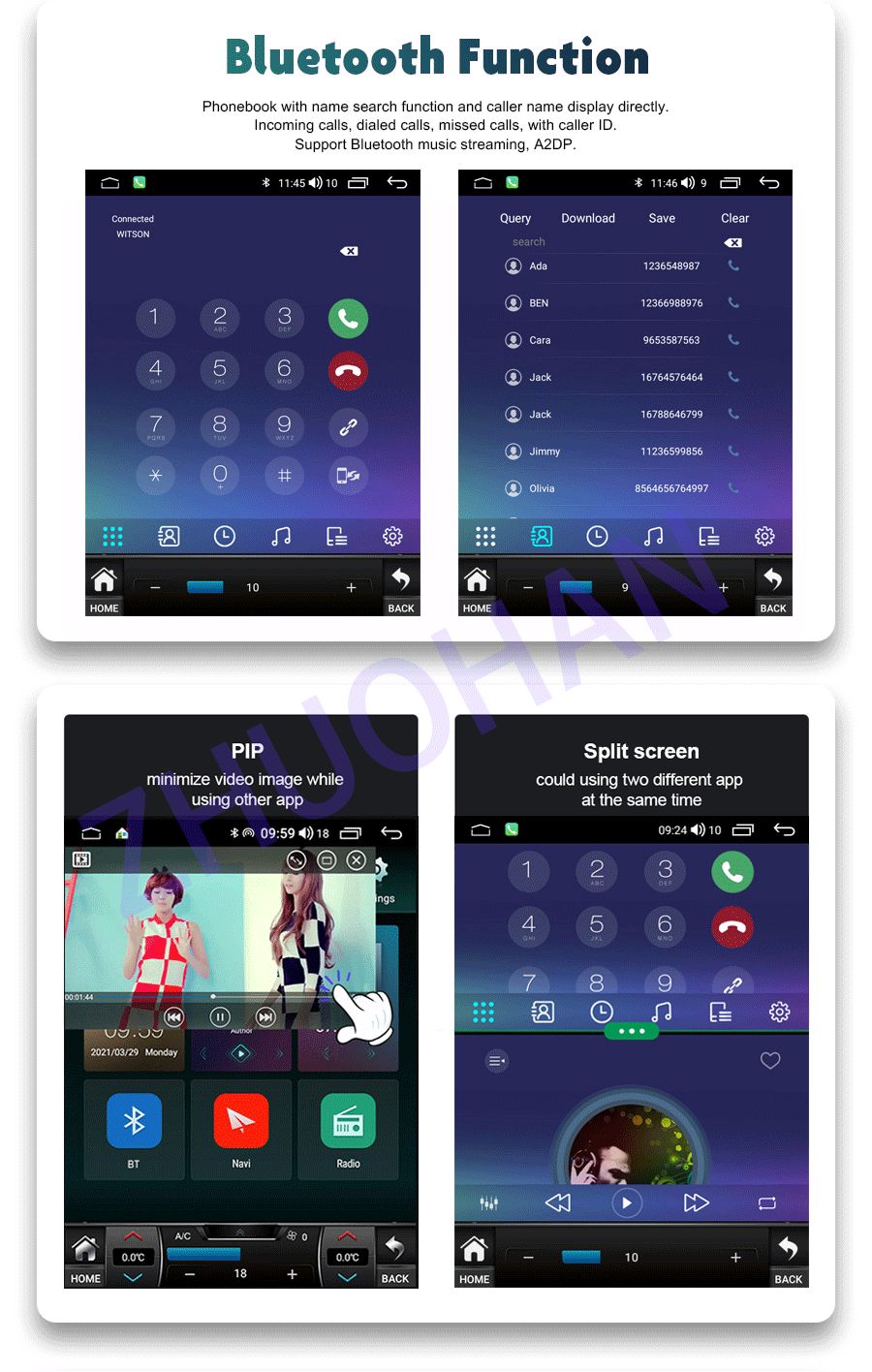

| Bluetooth Version | 5 |
| Microphone | External Microphone |
| DVD deck built-in | No |
| USB Port | 2 Channel |
| Max External Memory HDD | 128GB |
| WIFI/3G | Built-In WiFi Module |
| 4G | Yes |
| Mirror link | Yes |
| CANBUS | Yes |
| Display Screen | |
| Video Decode Support | 1080P |
| Resolution | 1024x768 |
| Screen Dimension | 9.7 inch 16:9 |
| Video & Audio | |
| Video Input | 2-Channel RCA Input |
| Audio Input | 2-Channel RCA Input |
| Audio Output | 2.1Channel RCA Output |
| Reverse Camera Input | Yes |
| Other Functions | |
| Pictrue In Pictrue | Yes |
| Steering Wheel Control Function | Yes |
| Carplay Dongle (USB Port) | Optional |
| DVR Camera (USB Port) | Optional |
| OBD Adaptor (Bluetooth) | Optional |
| DAB+ Receiver (USB Port) | Optional |
| TPMS Adaptor (USB Port) | Optional |
